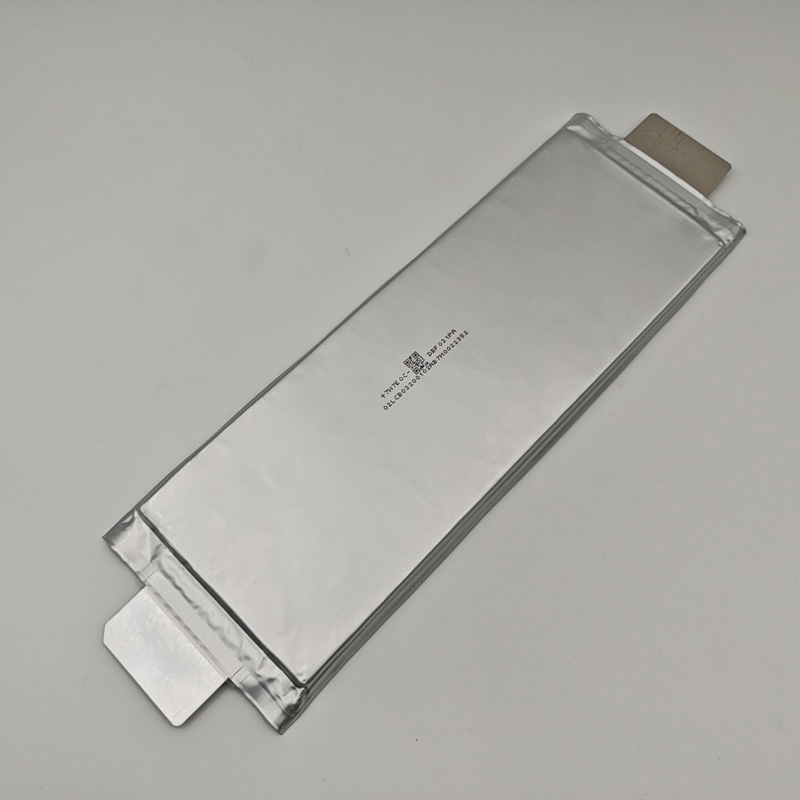

Pouch Cells for EV
SKU:
Original price was: $18.99.$7.49Current price is: $7.49.
61% Off
- High Performance LFP Pouch Cells.
- High Power Lithium ion Battery.
- 6C Max. Continuous Discharging Current.
- 13C Max. Pulse Discharging Current.
- 2C Max. Continuous Charging Current.
- 4C Max. Pulse Charging Current.
- Optional Nickel Plating is Offered Free of Charge.
Pouch Cells for EV
| Model No. | DBF031PA | |
| Manufacturer | Microvast | |
| Nominal Capacity | 31Ah | standard charge/discharge |
| Nominal Voltage | 3.2V | standard discharge |
| Gravimetric Energy Density | 160Wh/kg | standard discharge |
| Volumetric Energy Density | 321Wh/L | standard discharge |
| Continuous Charge Current | 31A@room temperature, 10A@-15℃ | |
| Continuous Discharge Current | 31A | |
| Standard Charge | 31A | constant current |
| 3.65V | cut-off voltage | |
| 3.1A | cut-off charge current | |
| 25℃±2℃ | ||
| Standard Discharge | 31A | constant current |
| 2.0V | cut-off discharge voltage | |
| 25℃±2℃ | ||
| Max.Continuous Charge Current | 62A | 25℃±2℃ |
| Max.Continuous Discharge Current | 186A | 25℃±2℃ |
| Max.Pulse Charge Current | 124A | 50%SOC, 10s |
| Max.Pulse Discharge Current | 412A | 50%SOC, 10s |
| Impedance | ≤0.70mΩ | AC, 1kHz |
| DC Internal Resistance | ≤1.8mΩ | DC, 50%SOC, 6C, 10s |
| Cycle Life | ≥4500 Cycles | 25℃±2℃ |
| ≥2000 Cycles | 45℃ | |
| Storage | ＞93% | retention rate |
| ＞98% | restoration rate | |
| Charge Ambient Temperature | -30℃~45℃ | |
| Discharge Ambient Temperature | -30℃~60℃ | |
| Cell Weight | 610g±10.0g | |
| Cell Dimension | ||
| Thickness | 9.80 mm±0.15 mm | |
| Width | 390 mm±1 mm | |
| Height | 101 mm±103 mm |
Microvast is a leading global technology innovator, specializing in the design, development, and manufacturing of cutting-edge battery solutions for a demanding world. For over a decade, the company has been at the forefront of the electrification movement, empowering industries with reliable, high-performance, and safe lithium-ion battery systems. Its mission is to accelerate the transition to sustainable energy by providing the foundational power that businesses can count on.
At the heart of the Microvast product line is a fundamental commitment to safety and longevity, engineered through a unique approach to lithium-ion chemistry. Unlike conventional batteries, many Microvast systems utilize a proprietary polyaramid separator. This advanced component provides exceptional thermal stability, significantly enhancing safety by mitigating the risk of thermal runaway. This unwavering focus on safety is matched by an exceptional cycle life; its batteries are built to endure thousands of deep cycles with minimal degradation, ensuring a lower total cost of ownership and maximum operational uptime. The company’s diverse portfolio is engineered to meet the rigorous demands of various sectors, including commercial transportation, energy storage systems (ESS), and industrial applications. Whether powering a fleet of electric buses, providing backup for critical infrastructure, or enabling heavy-duty machinery, Microvast batteries deliver consistent, high-power density and rapid charging capabilities.
The Microvast range offers robust, dependable, and economical power solutions for a wide array of applications. By leveraging its proven technology, businesses can energize their innovation and build a more efficient, electrified future.
At the heart of the Microvast product line is a fundamental commitment to safety and longevity, engineered through a unique approach to lithium-ion chemistry. Unlike conventional batteries, many Microvast systems utilize a proprietary polyaramid separator. This advanced component provides exceptional thermal stability, significantly enhancing safety by mitigating the risk of thermal runaway. This unwavering focus on safety is matched by an exceptional cycle life; its batteries are built to endure thousands of deep cycles with minimal degradation, ensuring a lower total cost of ownership and maximum operational uptime. The company’s diverse portfolio is engineered to meet the rigorous demands of various sectors, including commercial transportation, energy storage systems (ESS), and industrial applications. Whether powering a fleet of electric buses, providing backup for critical infrastructure, or enabling heavy-duty machinery, Microvast batteries deliver consistent, high-power density and rapid charging capabilities.
The Microvast range offers robust, dependable, and economical power solutions for a wide array of applications. By leveraging its proven technology, businesses can energize their innovation and build a more efficient, electrified future.
